ELIMINATE WELD CELL DOWNTIME!

inductive welding sensor - weld spatter splatter slag resistance

    • WELD FIELD IMMUNE ELECTRONICS
    • SLAG / SPATTER RESISTANT ACTIVSTONE ZG
    • STAINLESS STEEL SENSING FACE & HOUSING
    • EXTENDED RANGE FLUSH MOUNT
    • FACTOR 1 - SENSING ALL METALS
    • ABRASION RESISTANT
    • HIGH IMPACT TOLERANCE
    • HEAT RESISTANT INSULATED FACE

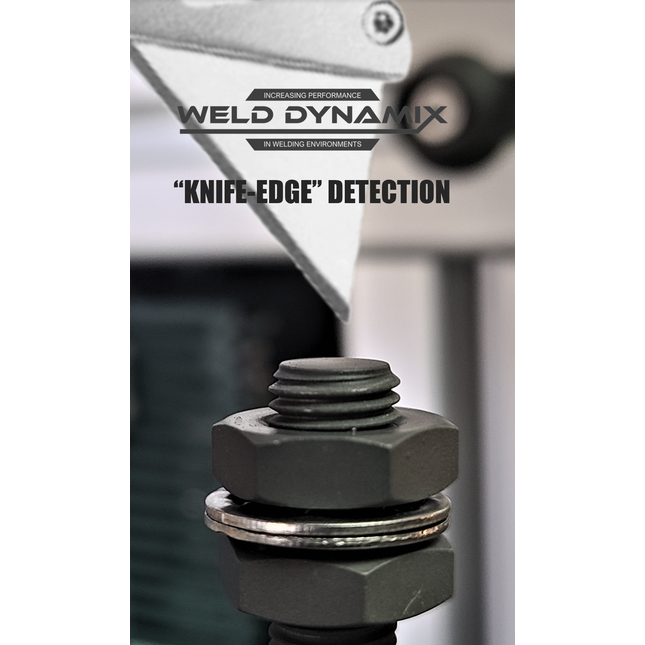

    • “KNIFE EDGE” DETECTION

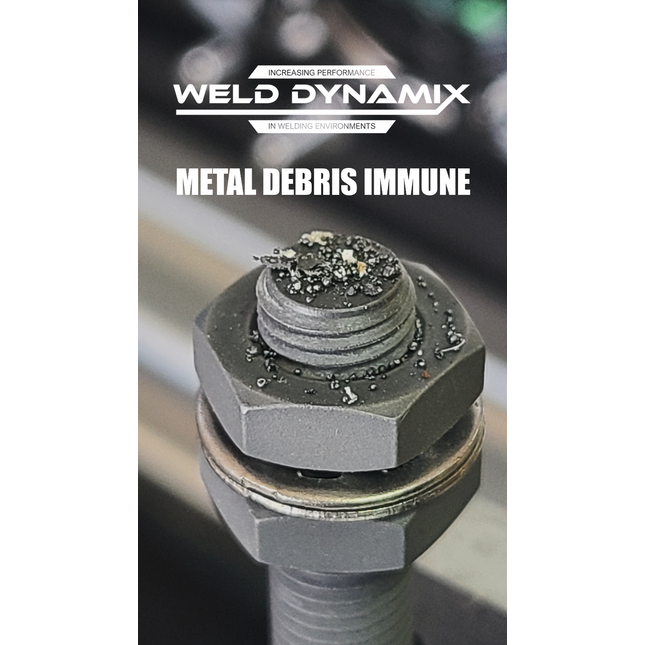

    • IMMUNE TO METAL DEBRIS



        • Smallest LONG RANGE Inductive Proximity Sensor by Weld Dynamix ACTIVSTONE steel sensing face - spatter splatter slag resistant coating all metals Smallest LONG RANGE Inductive Proximity Sensor by Weld Dynamix ACTIVSTONE steel sensing face - spatter splatter slag resistant coating all metalsMicro Inductive Sensor | proximity sensors | Weld Dynamix

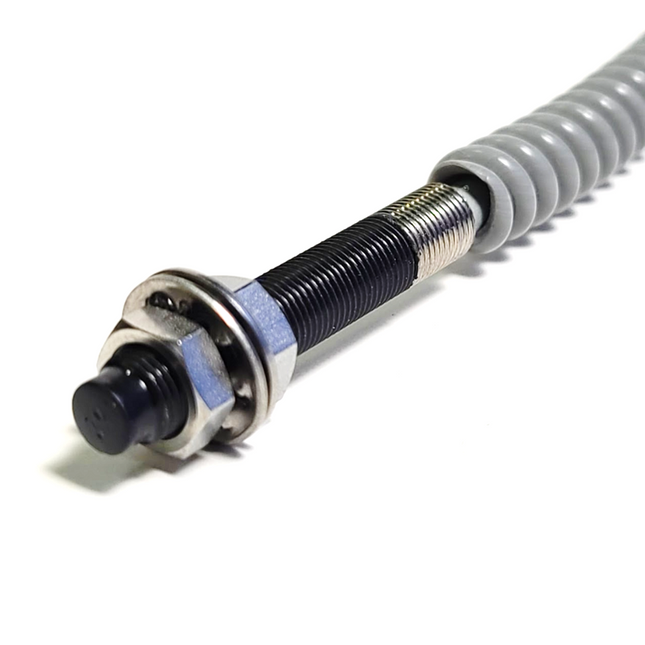

          #WSI-0503-SA2Z Micro Inductive Sensor - 5mm Diameter (3mm Range)

          #WSI-0503-SA2Z specifications             STP File                                                to all sensors 5mm Diameter 3mm  Sensing Range Multi-metal sensing (Factor 1) full range on Aluminum and Steel PNP/N.O. 2M cable Stainless Steel body & face IP68/IP69  ZG Coating - protects against weld slag / spatter, heat and abrasion

        • Inductive Sensor | pnp no proximity sensor | Weld Dynamix Inductive Sensor | pnp no proximity sensor | Weld Dynamix

          #WSI-0803-SAAZ Inductive Sensor - 8mm Diameter (3mm range)

          WSI-0803-SAAZ specifications                   STP File                                          to all sensors WFI (Weld Field Immune) Inductive Proximity Sensor with ACTIVSTONE ZG   8mm Diameter 3mm sensing range WFI (Weld Field Immune) electronics Stainless steel face & body Multi-metal sensing (Factor 1) on Steel and Aluminum PNP/N.O. M12 connector IP68/IP69 Rating ACTIVSTONE ZG weld spatter resistant coating

        • #WSI-0803-SABZ Inductive Sensor | metal detector sensor | Weld Dynamix #WSI-0803-SABZ Inductive Sensor | metal detector sensor | Weld Dynamix

          #WSI-0803-SABZ Inductive Sensor - 8mm Diameter (3mm range)

          #WSI-0803-SABZ specifications                                                                        to all sensors WFI (Weld Field Immune) Inductive Proximity Sensor with ACTIVSTONE ZG   8mm Diameter 3mm sensing range WFI (Weld Field Immune) electronics Stainless steel face & body Multi-metal sensing (Factor 1) on Steel and Aluminum PNP/N.O. M12 connector IP68/IP69 Rating ZG weld spatter resistant coating

        • Inductive Sensor | pnp no proximity sensor | Weld Dynamix Inductive Sensor | pnp no proximity sensor | Weld Dynamix

          #WSI-0803-SACZ Inductive Sensor - 8mm Diameter (3mm range)

          WSI-0803-SACZ specifications                   STP File                                          to all sensors WFI (Weld Field Immune) Inductive Proximity Sensor with ACTIVSTONE ZG   8mm Diameter 3mm sensing range WFI (Weld Field Immune) electronics Stainless steel face & body Multi-metal sensing (Factor 1) on Steel and Aluminum PNP/N.O. 0.2m pigtail with M8 connector IP68/IP69 Rating ACTIVSTONE ZG coating ACTIVFLEX cable protection installed

        • #WSI-1206-SAAZ Inductive Sensor | proximity sensors | Weld Dynamix #WSI-1206-SAAZ Inductive Sensor | proximity sensors | Weld Dynamix

          #WSI-1206-SAAZ Inductive Sensor - 12mm Diameter (6mm range)

          #WSI-1206-SAAZ specification          STP File                                                     to all sensors 12mm Diameter 6mm  Sensing Range Weld Immune Electronics Multi-metal sensing (Factor 1) full range on Aluminum and Steel PNP/NO, M12 Connector Stainless Steel body & face IP68/IP69 Coating - protects against weld spatter, heat and abrasion

        • #WSI-1602-MAAH  - MINI FLAT PACK  (Lighted M12)

        • #WSI-1602-MABH  - MINI FLAT PACK  (Lighted M8)

        • #WSI-1810-SAAZ Inductive Sensor | metal detector sensor | Weld Dynamix #WSI-1810-SAAZ Inductive Sensor | metal detector sensor | Weld Dynamix

          #WSI-1810-SAAZ Inductive Sensor - 18mm Diameter (10mm range)

          #WSI-1810-SAAZ specifications                                                                      to all sensors WFI (Weld Field Immune) Inductive Proximity Sensor with ACTIVSTONE ZG   18mm Diameter 10mm Extended Sensing Range  Weld Immune Electronics Multi-metal sensing (Factor 1) full range on Aluminum and Steel PNP/N.O. M12 Connector Stainless steel face & body IP68/IP69 ACTIVSTONE ZG Abrasion & Spatter Resistant Coating

        • #WSI-3016-SAAZ Inductive Sensor | proximity sensors | Weld Dynamix #WSI-3016-SAAZ Inductive Sensor | proximity sensors | Weld Dynamix

          #WSI-3016-SAAZ Inductive Sensor - 30mm Diameter (16mm range)

          #WSI-3016-SAAZ specification                                                                        to all sensors WFI (Weld Field Immune) Inductive Proximity Sensor with ACTIVSTONE ZG   30mm Diameter 16mm Extended Sensing Range Weld Immune Electronics Multi-metal sensing (Factor 1) on Aluminum and Steel PNP/N.O. M12 Connector Stainless Steel face & body IP68/IP69 Rating  ZG Spatter Resistant Coating

        • Inductive Flat Sensor | pnp no proximity sensor | Weld Dynamix

          #WSI-3207-SAAZ Z-PROX Inductive Flat Sensor; 32x20x8mm (Range 7mm)

          #WSI-3207-SAAZ Specifications                                                                       to all sensors Inductive Proximity Sensor with ACTIVSTONE ZG coating 32 x 20 x 8mm body 7mm sensing range Stainless steel body & face Multi-metal sensing (Factor 1) PNP/NO, M12 connector IP68/IP69 Rating ACTIVSTONE ZG weld spatter resistant coating
