ELIMINATE WELD CELL DOWNTIME!

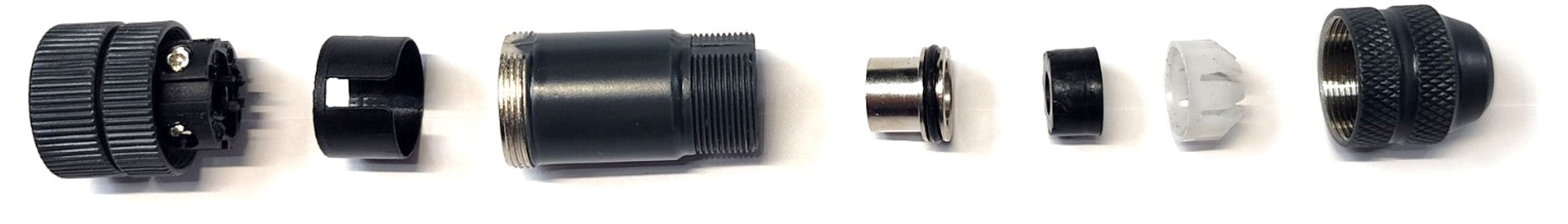

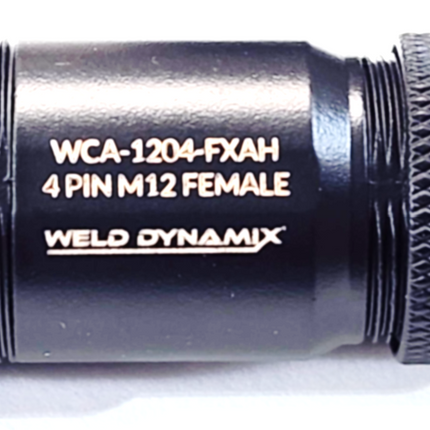

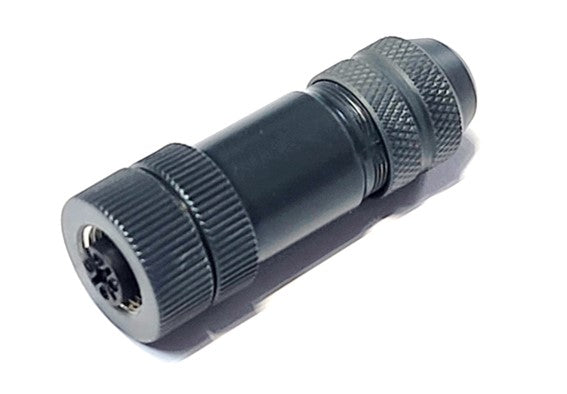

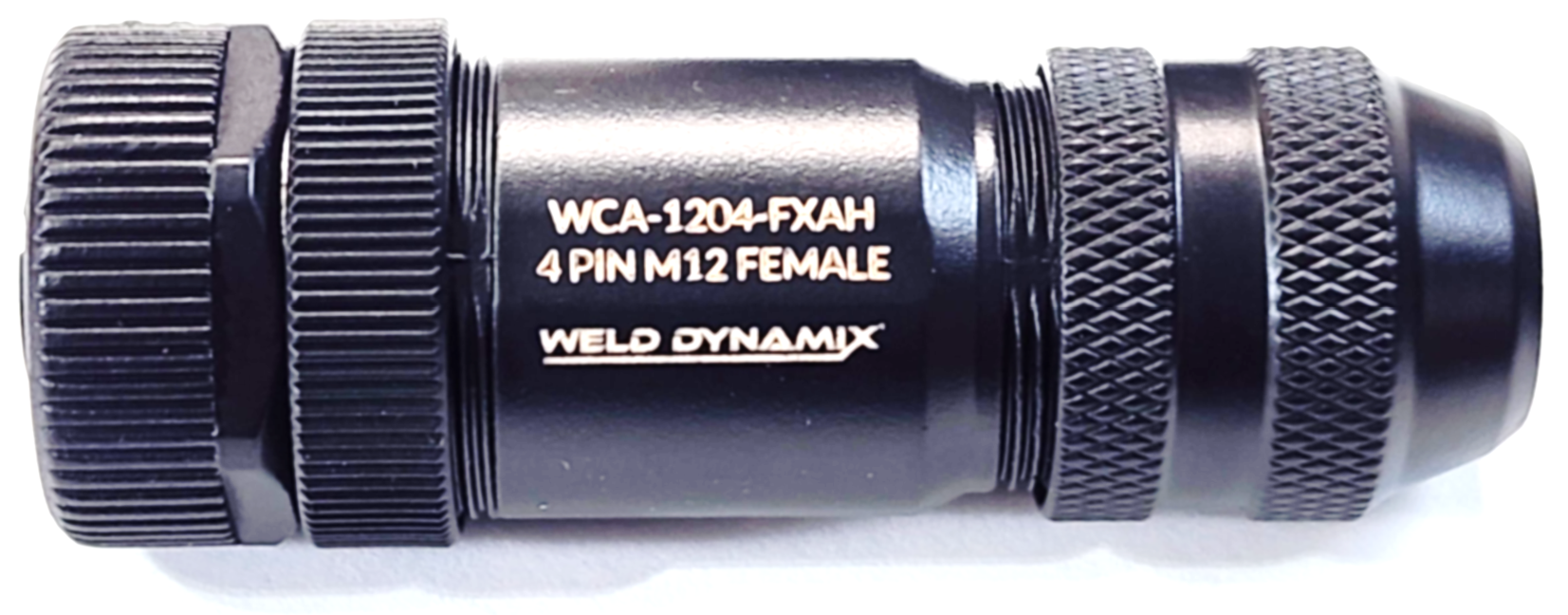

#WCA-1204-FXAH M12 4-Pin Female Field Attachable Connector

Description

M12 4-Pin Female Field Attachable Connector Specifications

TERMINATION – SCREW TERMINALS
NUMBER OF PINS  4
UL FILE E363587
OPERATING VOLTAGE
     OPERATING VOLTAGE UB MAX 250V
     OPERATING CURRENT IB 4A
TEMPERATURE -40 TO 190 DEGREES F
ENVIRONMENTAL RATING IP67
BODY MATERIAL ZINC

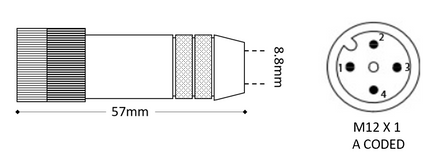

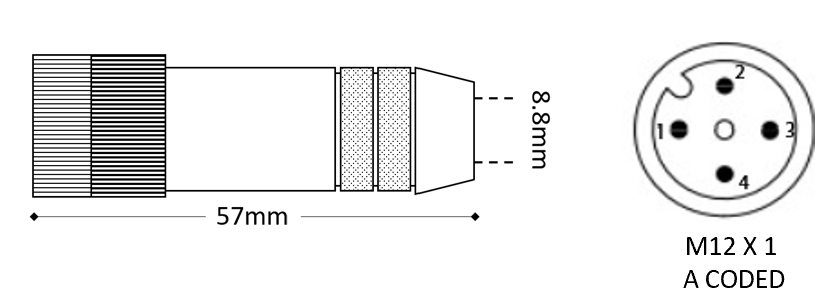

CABLE DIAMETER RANGE 5MM – 8MM
CONTACT SURFACE GOLD

WELD DYNAMIX - ACTIVSTONE COATING - DESIGNED FOR WELD CELLS

Product form

SKU: WCA-1204-FXAH

M12 4-Pin Female Field Attachable Connector Specifications TERMINATION – SCREW TERMINALS NUMBER OF PINS  4 UL FILE E363587 OPERATING VOLTAGE... Read more

Excl. VAT

Description

M12 4-Pin Female Field Attachable Connector Specifications

TERMINATION – SCREW TERMINALS
NUMBER OF PINS  4
UL FILE E363587
OPERATING VOLTAGE
     OPERATING VOLTAGE UB MAX 250V
     OPERATING CURRENT IB 4A
TEMPERATURE -40 TO 190 DEGREES F
ENVIRONMENTAL RATING IP67
BODY MATERIAL ZINC
CABLE DIAMETER RANGE 5MM – 8MM
CONTACT SURFACE GOLD

WELD DYNAMIX - ACTIVSTONE COATING - DESIGNED FOR WELD CELLS
