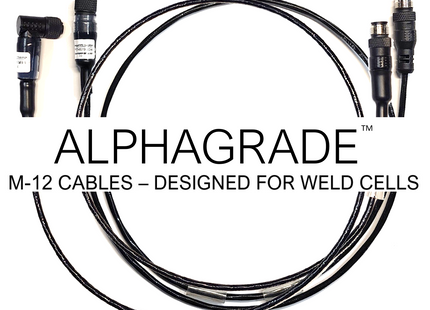

#WCC-0060-T5MF9-A ALPHAGRADE Universal Weld Immune Cable 0.6m Length - 5 Pin M Straight/F 90 - Shielded

Description

DIMENSIONS

KEY FEATURES:

  • M-12 A CODED, MALE ST -FEMALE 90
  • 5-WIRE, 22GA, TINNED COPPER CONDUCTORS
  • SHIELDED: ALUM FOIL AND COPPER BRAID
  • LOW-PROFILE 4mm CABLE CROSS SECTION
  • >2 MILLION FLEX CYCLES @20XOD
  • FEP UV & CORROSION RESISTANT JACKET
  • +200° C MAX CABLE OPERATING TEMPERATURE
  • VW-1 FLAME TEST
  • ACTIVSTONE-COATED COUPLING NUT
  • 60VDC, UL759, UL1581 CSAC22.2 NO 210.2
  • INGRESS RATING - IP69K

Product form

SKU: WCC-0060-T5MF9-A

Excl. VAT

Description

DIMENSIONS

KEY FEATURES:

  • M-12 A CODED, MALE ST -FEMALE 90
  • 5-WIRE, 22GA, TINNED COPPER CONDUCTORS
  • SHIELDED: ALUM FOIL AND COPPER BRAID
  • LOW-PROFILE 4mm CABLE CROSS SECTION
  • >2 MILLION FLEX CYCLES @20XOD
  • FEP UV & CORROSION RESISTANT JACKET
  • +200° C MAX CABLE OPERATING TEMPERATURE
  • VW-1 FLAME TEST
  • ACTIVSTONE-COATED COUPLING NUT
  • 60VDC, UL759, UL1581 CSAC22.2 NO 210.2
  • INGRESS RATING - IP69K
