ELIMINATE WELD CELL DOWNTIME!

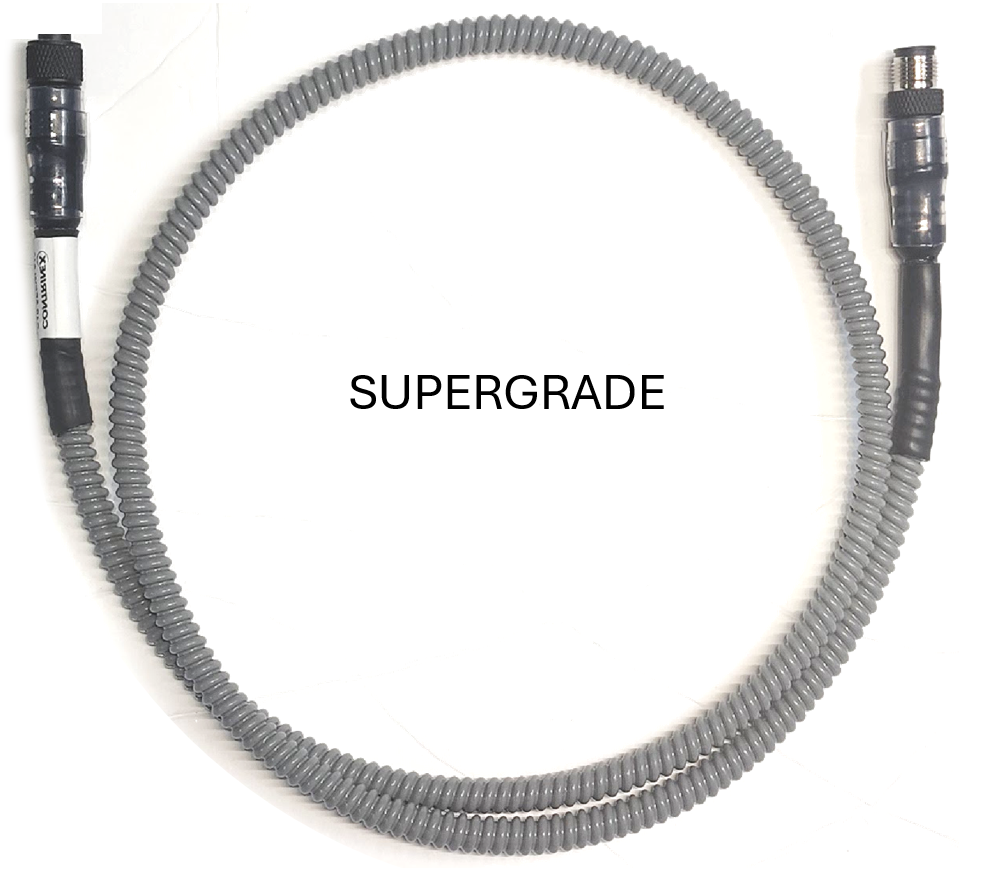

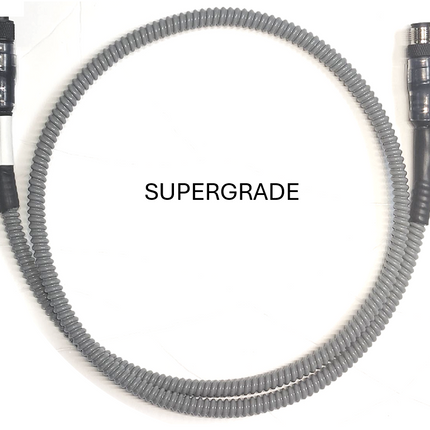

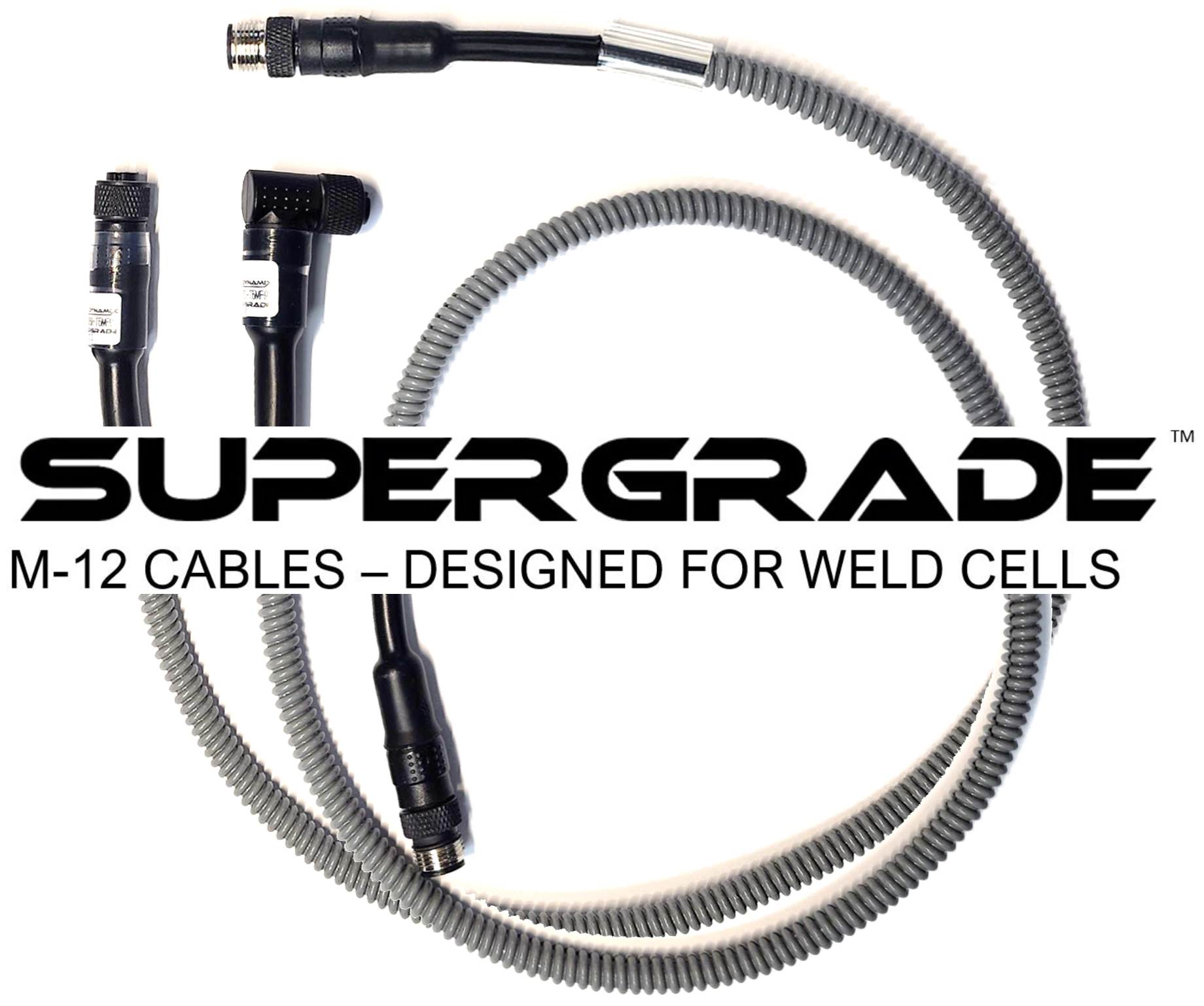

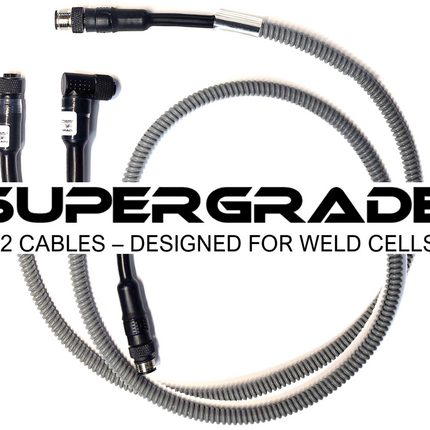

#WCC-XXXX-T5MF SUPERGRADE Cable 0.3m to 20m Length - 5 Pin M/F Shielded - ACTIVFLEX INSTALLED

Description

DIMENSIONS

KEY FEATURES:

  • ACTIVFLEX 260° C COVER
  • ACTIVSTONE COATED COUPLING NUTS

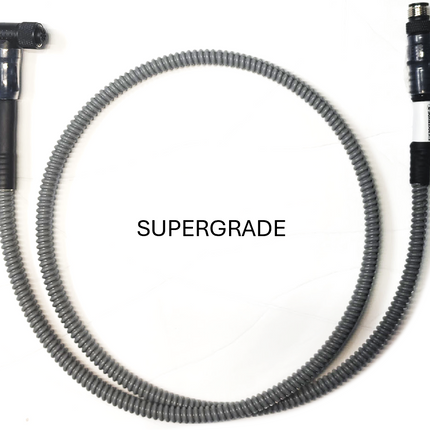

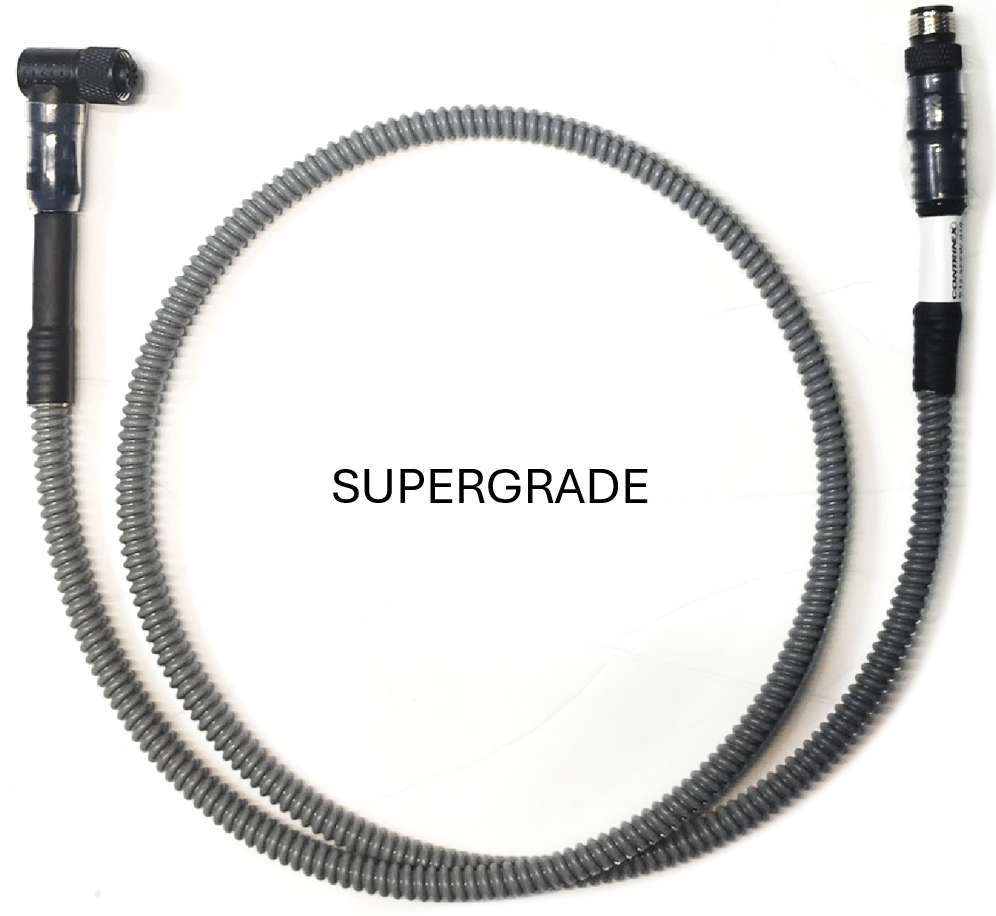

  • M-12 A CODED, MALE ST - FEMALE ST & 90 VERSIONS
  • 0.3m to 20m LENGTHS (CUSTOM LENGTHS AVAILABLE)
  • SINGLE AND DOUBLE SIDED HIGH INTENSITY LED AVAILABLE

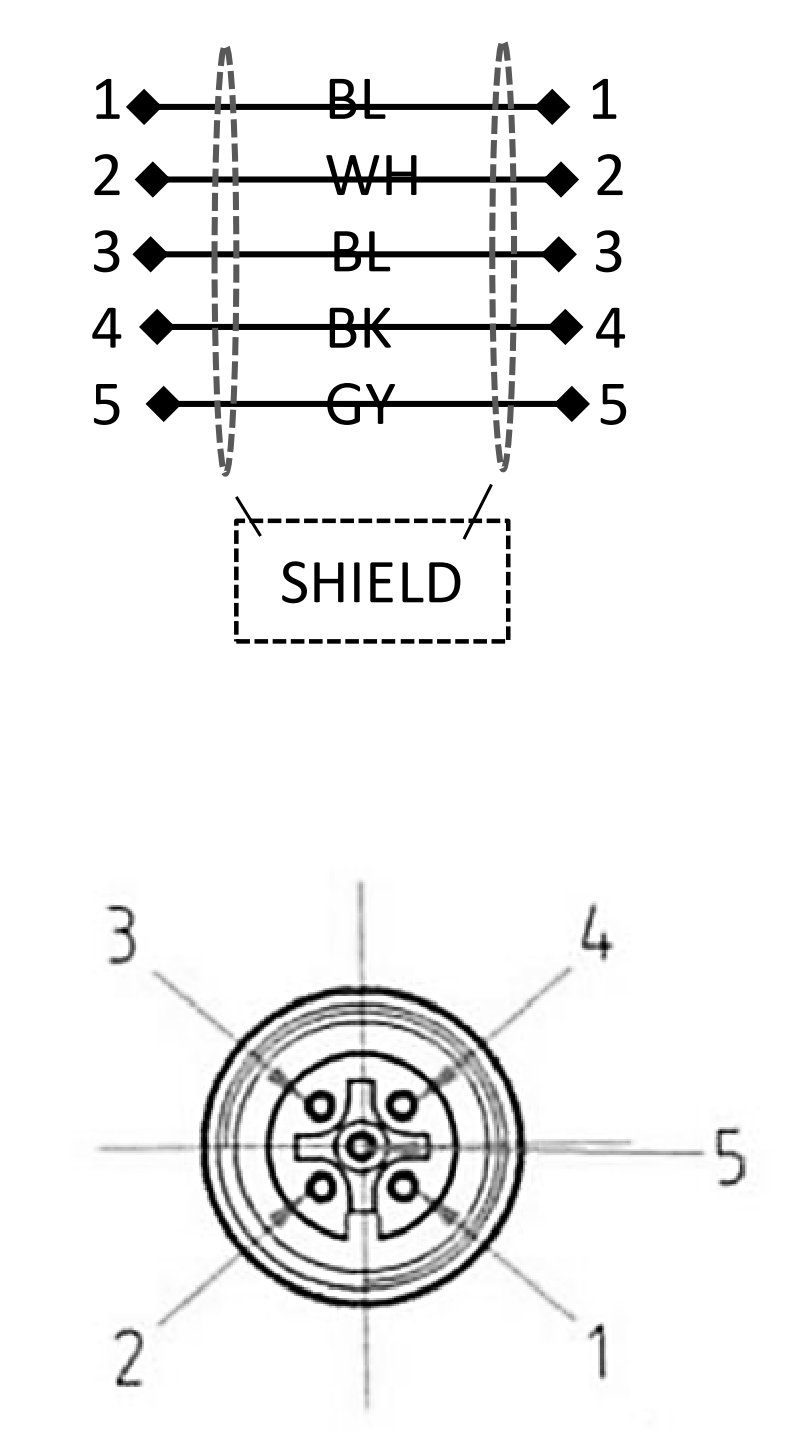

  • 5-WIRE, 22GA, TINNED COPPER CONDUCTORS
  • SHIELDED: ALUM FOIL AND COPPER BRAID
  • LOW-PROFILE 4mm CABLE CROSS SECTION
  • >2 MILLION FLEX CYCLES @20XOD
  • FEP UV & CORROSION RESISTANT JACKET
  • +200° C MAX CABLE OPERATING TEMPERATURE
  • VW-1 FLAME TEST
  • ACTIVSTONE-COATED GRIPSHIELD ACCESSORY COMPATIBLE
  • 60VDC, UL759, UL1581 CSAC22.2 NO 210.2
  • INGRESS RATING - IP69K

Product form

SKU: WCC-XXXX-T5MF

DIMENSIONS KEY FEATURES: ACTIVFLEX 260° C COVER ACTIVSTONE COATED COUPLING NUTS M-12 A CODED, MALE ST - FEMALE ST &... Read more

Excl. VAT

Description

DIMENSIONS

KEY FEATURES:

  • ACTIVFLEX 260° C COVER
  • ACTIVSTONE COATED COUPLING NUTS
  • M-12 A CODED, MALE ST - FEMALE ST & 90 VERSIONS
  • 0.3m to 20m LENGTHS (CUSTOM LENGTHS AVAILABLE)
  • SINGLE AND DOUBLE SIDED HIGH INTENSITY LED AVAILABLE
  • 5-WIRE, 22GA, TINNED COPPER CONDUCTORS
  • SHIELDED: ALUM FOIL AND COPPER BRAID
  • LOW-PROFILE 4mm CABLE CROSS SECTION
  • >2 MILLION FLEX CYCLES @20XOD
  • FEP UV & CORROSION RESISTANT JACKET
  • +200° C MAX CABLE OPERATING TEMPERATURE
  • VW-1 FLAME TEST
  • ACTIVSTONE-COATED GRIPSHIELD ACCESSORY COMPATIBLE
  • 60VDC, UL759, UL1581 CSAC22.2 NO 210.2
  • INGRESS RATING - IP69K
