M12 Male Straight Field Wireable - 4-pin A-coded · metal shell · IP67
Design family Field Wireable
No picture

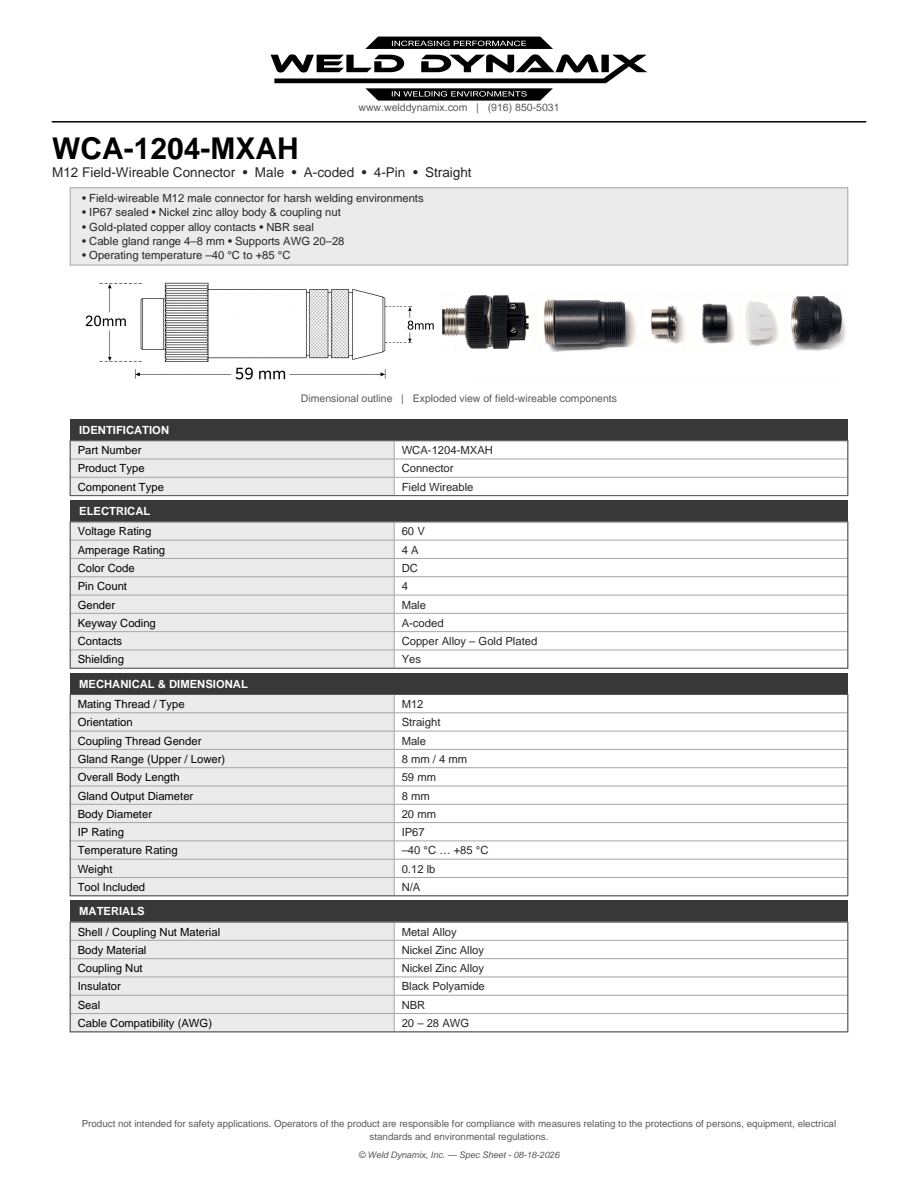

Dimensional outline
Part Pic 2
Technical data
Identification
- Component Type
- Connector
- Family
- Field Wireable
- COATING (Y-N)
- Y
- COATING TYPE (Z)
- Z
- Pieces Per Package
Electrical
- Voltage Rating
- 60 V
- Amperage Rating
- 4 A
- Color Code
- DC
- Pin Count
- 4
- HEAD 1 Pin Gender
- Male
- Keyway Coding
- A-coded
- Contacts
- Copper Alloy - Gold Plated
- Shielding
- Yes
Mechanical & Dimensional
- HEAD 1 Mating Thread Type
- M12
- HEAD 1 Orientation
- Straight
- HEAD 1 Coupling Nut Gender
- Male
Mechanical & Dimensional
- Gland Upper Range
- 8 mm
- Gland Lower Range
- 4 mm
- Overall Body Length
- 59 mm
- Gland Output Diameter
- 8 mm
- Body Diameter
- 20 mm
- IP Rating
- IP67
- Temperature Rating
- -40 °C ... +85 °C
- Weight (lbs.)
- 0.12
Materials
- Shell / Coupling Nut Material
- Metal Alloy
- Body Material
- Nickel Zinc Alloy
- Coupling Nut
- Nickel Zinc Alloy
- Insulator
- Black Polyamide
- Seal
- NBR
- Wire Gauge
- 20 – 28 AWG
- Upper AWG
- 20
- Lower AWG
- 28
Certifications
