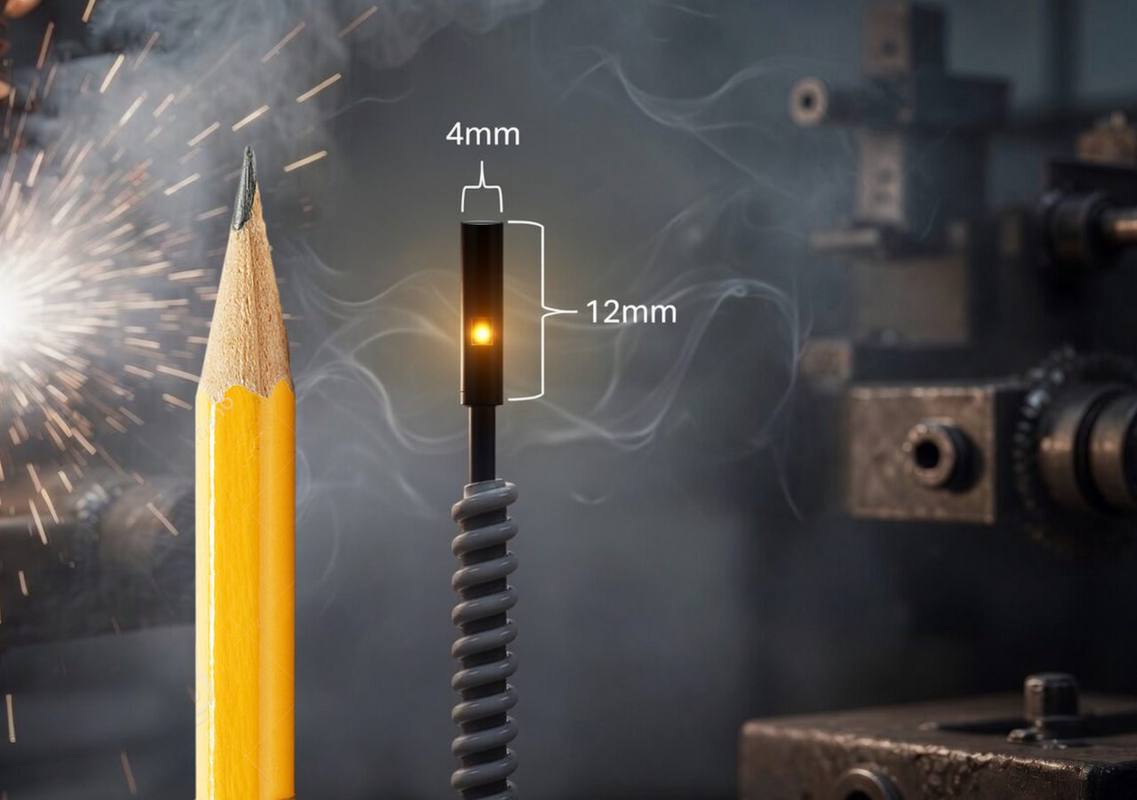

M5 3 mm PNP, NPN - 3 mm · PNP, NPN · M5
Design family CUSTOM
No picture
Dimensions
Pinout
Output Circuit
Technical data
Identification
- Design Family
- CUSTOM
- Application
- WELDING
- NOTE 1
- Miniature F1
- TARGETS
- Steel, Aluminum
- Special Features
- Factor 1 on Fe/Al
- Pieces Per Package
Housing
- Shape
- Cylindrical
- Form Factor
- M5
- Dimensions
- Ø5×~30
- Mounting
- Quasi-Flush
Sensing
- Rated Sensing Distance (Sn)
- 3 mm
- Correction Factors
- Steel 100% Stainless St 85%, Al 100%
- Hysteresis
- 3–15%
- Repeat Accuracy
- ≤0.15 mm
Electrical
- Output Function Available
- PNP, NPN
- Switching Frequency
- ≤1.2 kHz
Electrical
- Supply Voltage
- 10–30 VDC
- No-Load Current
- ≤10 mA
- Max Output Current
- ≤200 mA
- Voltage Drop
- ≤2 V
Environment
- Operating Temperature
- -25…+85°C
- Protection Class
- IP67
Materials
- Material (body)
- 304 Stainless
- Material (Face)
- High Temp Epoxy
- Coating
- EXOLINC
- Coating Type
- Z
Cable
- Cable Sheath Outer
- ACTIVFLEX TUBULAR
- Cable Sheath Outer Length
- 2m
- Cable Length
- 2m
- Cable Exit Direction
- Straight
Connection
- LED on Sensor
- YES
Certifications
