M8 3 mm PNP - 3 mm · PNP · M8
Design family HYPERLIFE
No picture
Dimensions
Pinout

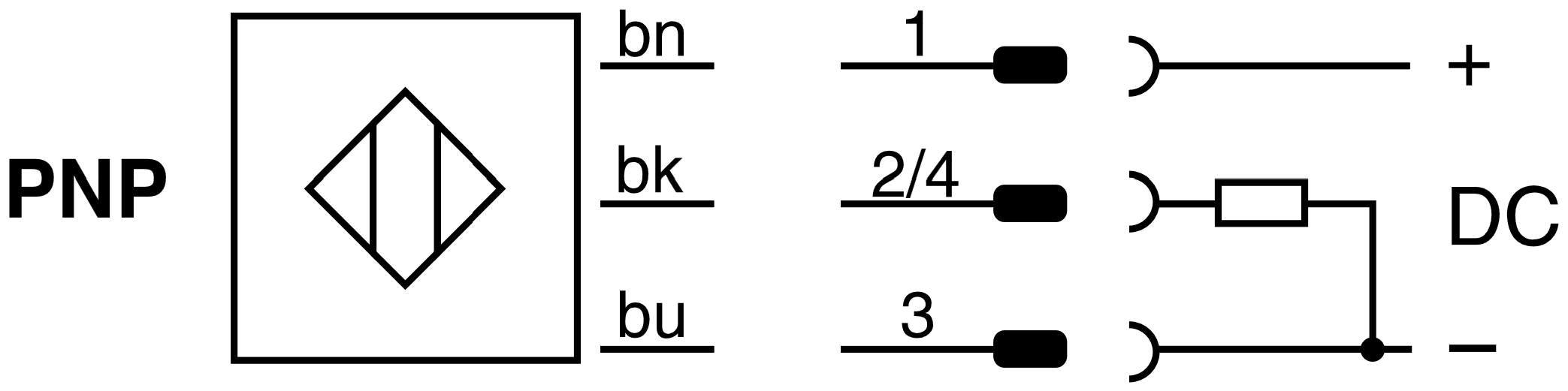

Output Circuit
Technical data
Identification
- Design Family
- HYPERLIFE
- Application
- WELDING
- NOTE 1
- M8 x 45mm
- TARGETS
- Steel, Aluminum
- Special Features
- Weld-immune
- Pieces Per Package
Housing
- Shape
- Cylindrical
- Form Factor
- M8
- Dimensions
- M8 x 45mm
- Mounting
- Flush
Sensing
- Rated Sensing Distance (Sn)
- 3 mm
- Correction Factors
- Steel 100% Stainless St 70%, Al 100%
- Hysteresis
- 3–15%
- Repeat Accuracy
- ≤0.15 mm
Electrical
- Output Function Available
- PNP
- Switching Frequency
- 15 kHz
Electrical
- Supply Voltage
- 10–30 VDC
- No-Load Current
- ≤10 mA
- Max Output Current
- ≤200 mA
- Voltage Drop
- ≤2 V
Environment
- Operating Temperature
- -25…+85°C
- Protection Class
- IP67–IP69K
Materials
- Material (body)
- 304 Stainless
- Material (Face)
- HYPERFACE
- Coating
- EXOLINC
- Coating Type
- Z
Cable
- Cable Sheath Outer
- ACTIVFLEX TUBULAR
- Cable Sheath Outer Length
- 2m
- Cable Length
- 2m
- Cable Exit Direction
- Straight
Connection
- LED on Sensor
- YES
Certifications
