UNIVERSAL SHIELDED 5-WIRE M12 CABLE - THIN PROFILE, HIGH-TEMP, FLEX-RATED (2 MILLION)

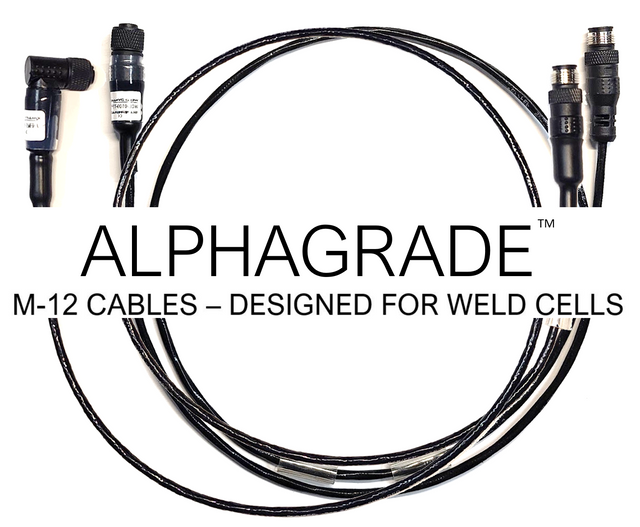

ALPHAGRADE 5-WIRE UNIVERSAL
#WCC-0060-T5MF-A ALPHAGRADE Universal Weld Immune Cable 0.6m Length - 5 Pin M Straight/F Straight - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE ST 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$49.90 USD
-
#WCC-0060-T5MF9-A ALPHAGRADE Universal Weld Immune Cable 0.6m Length - 5 Pin M Straight/F 90 - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE 90 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$49.90 USD
-
#WCC-0100-T5MF-A ALPHAGRADE Universal Weld Immune Cable 1.0m Length - 5 Pin M Straight/F Straight - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE ST 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$58.35 USD
-

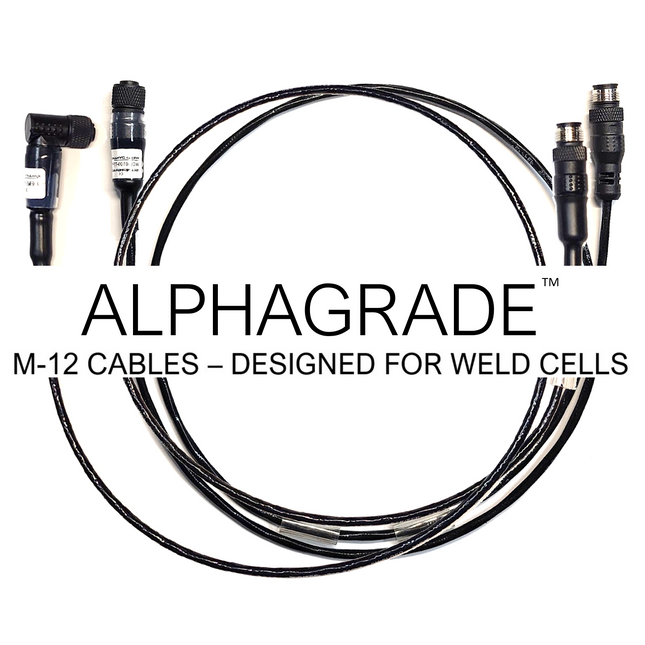

#WCC-0100-T5MF9-A ALPHAGRADE Universal Weld Immune Cable 1.0m Length - 5 Pin M Straight/F 90 - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE 90 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$58.35 USD
-
#WCC-0200-T5MF-A ALPHAGRADE Universal Weld Immune Cable 2.0m Length - 5 Pin M Straight/F Straight - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE 90 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$78.66 USD
-

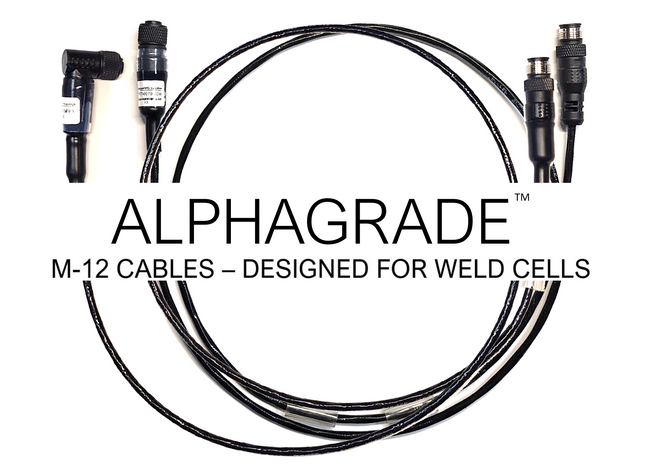

#WCC-0200-T5MF9-A ALPHAGRADE Universal Weld Immune Cable 2.0m Length - 5 Pin M Straight/F 90 - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE 90 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$78.66 USD
-
#WCC-0500-T5MF-A ALPHAGRADE Universal Weld Immune Cable 5m Length - 5 Pin M Straight/F Straight - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE ST 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$99.00 USD
-
#WCC-0500-T5MF9-A ALPHAGRADE Universal Weld Immune Cable 5m Length - 5 Pin M Straight/F 90 - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE 90 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$99.00 USD
-
#WCC-1000-T5MF-A ALPHAGRADE Universal Weld Immune Cable 10m Length - 5 Pin M Straight/F ST - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE ST 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$117.22 USD
-
#WCC-1000-T5MF9-A ALPHAGRADE Universal Weld Immune Cable 10m Length - 5 Pin M Straight/F 90 - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE 90 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$58.35 USD
-
#WCC-2000-T5MF-A ALPHAGRADE Universal Weld Immune Cable 20m Length - 5 Pin M Straight/F Straight - Shielded
DRAWING KEY FEATURES: M-12 A CODED, MALE ST -FEMALE ST 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$290.57 USD
-
#WCC-2000-T5MF9-A ALPHAGRADE Universal Weld Immune Cable 20m Length - 5 Pin M Straight/F 90 - Shielded
DIMENSIONS KEY FEATURES: M-12 A CODED, MALE ST -FEMALE 90 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$290.57 USD
-
#WCC-2000-T5MF-A-INOX ALPHAGRADE Universal INOX Cable 20m Length - 5 Pin M Straight/F Straight - Shielded
DRAWING KEY FEATURES: M-12 A CODED, MALE ST -FEMALE ST 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED GRIPSHIELD ACCESSORY COMPATIBLE 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$300.57 USD
-
#WCC-2000-T5MF9-A-INOX ALPHAGRADE Universal INOX Cable 20m Length - 5 Pin M Straight/F 90 - Shielded
DRAWING KEY FEATURES: M-12 A CODED, MALE ST -FEMALE 90 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4mm CABLE CROSS SECTION >2 MILLION FLEX CYCLES @20XOD FEP UV & CORROSION RESISTANT JACKET +200° C MAX CABLE OPERATING TEMPERATURE VW-1 FLAME TEST ACTIVSTONE-COATED COUPLING NUT 60VDC, UL759, UL1581 CSAC22.2 NO 210.2 INGRESS RATING - IP69K
$300.57 USD
