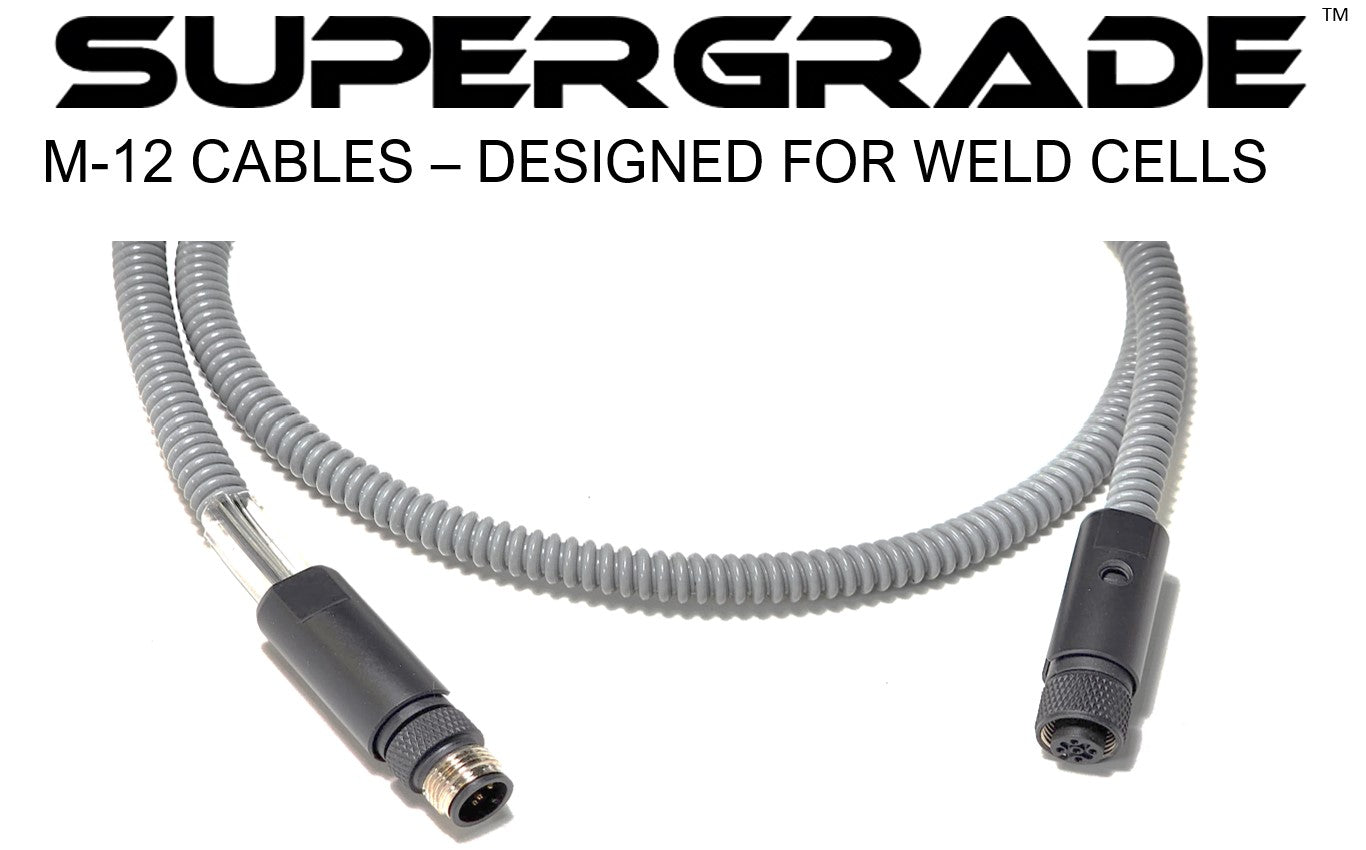

#WCC-0200-T5MF SUPERGRADE Cable 2.0m Length - 5 Pin M/F Shielded - ACTIVFLEX Installed

Description

KEY FEATURES:

  • M-12 A CODED, MALE-FEMALE
  • 5-WIRE, 22GA, TINNED COPPER CONDUCTORS
  • SHIELDED: ALUM FOIL AND COPPER BRAID
  • LOW-PROFILE 4.5mm CABLE CROSS SECTION
  • >2 MILLION FLEX CYCLES @20XOD
  • FEP UV & CORROSION RESISTANT JACKET
  • +400 DEG F MAX CABLE OPERATING TEMPERATURE
  • VW-1 FLAME TEST
  • ACTIVSTONE-COATED OVERMOLD SHIELD
  • GRIP-COATED COUPLING NUT
  • 60VDC, UL759, UL1581 CSAC22.2 NO 210.2
  • INGRESS RATING - IP69K
  • UL94-V) RATED TRANSPARENT CABLE MARKER SLEEVE
  • 500 DEG F MAX ACTIVFLEX OPERATING TEMPERATURE

Product form

KEY FEATURES: M-12 A CODED, MALE-FEMALE 5-WIRE, 22GA, TINNED COPPER CONDUCTORS SHIELDED: ALUM FOIL AND COPPER BRAID LOW-PROFILE 4.5mm CABLE... Read more

Excl. VAT

    Description

    KEY FEATURES:

    • M-12 A CODED, MALE-FEMALE
    • 5-WIRE, 22GA, TINNED COPPER CONDUCTORS
    • SHIELDED: ALUM FOIL AND COPPER BRAID
    • LOW-PROFILE 4.5mm CABLE CROSS SECTION
    • >2 MILLION FLEX CYCLES @20XOD
    • FEP UV & CORROSION RESISTANT JACKET
    • +400 DEG F MAX CABLE OPERATING TEMPERATURE
    • VW-1 FLAME TEST
    • ACTIVSTONE-COATED OVERMOLD SHIELD
    • GRIP-COATED COUPLING NUT
    • 60VDC, UL759, UL1581 CSAC22.2 NO 210.2
    • INGRESS RATING - IP69K
    • UL94-V) RATED TRANSPARENT CABLE MARKER SLEEVE
    • 500 DEG F MAX ACTIVFLEX OPERATING TEMPERATURE
